Introduction:

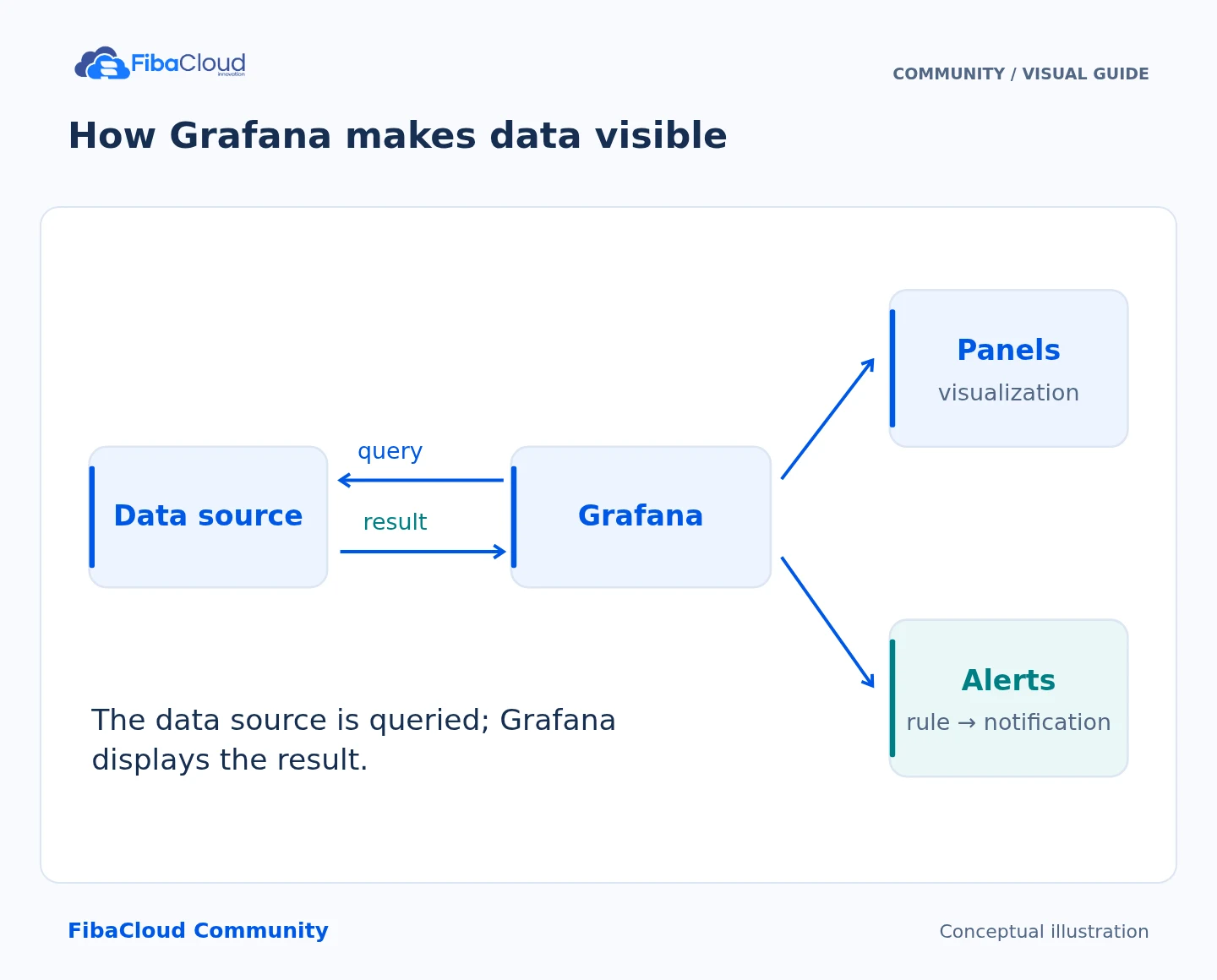

Grafana is an open source data visualization platform. It allows you to create dashboards, charts, and dashboards to track and analyze your time series data. Grafana can collect data from a variety of data sources, including servers, networks, websites, and more.
In this guide, we will show you step by step how to install Grafana on Ubuntu 20.04 LTS server.
Requirements:
- Ubuntu 18.04 and Above
- SSH access
- Sudo privilege
Installation Steps:
1. Update Packages:
Connect to the server via SSH and update the packages using the following command:
sudo apt update && sudo apt upgrade
2. Add Grafana Repository:
Add the Grafana repository using the following command:
mkdir -p /etc/apt/keyrings/
wget -q -O - https://apt.grafana.com/gpg.key | gpg --dearmor > /etc/apt/keyrings/grafana.gpg
echo "deb [signed-by=/etc/apt/keyrings/grafana.gpg] https://apt.grafana.com stable main" | tee /etc/apt/sources.list.d/grafana.list
3. Update Packages:
After adding the repository, update the packages again:
sudo apt update
4. Install Grafana:
Install Grafana using the following command:
sudo apt install -y grafana
5. Start Grafana Service:
Start the Grafana service:
sudo systemctl start grafana-server
6. Activate Grafana Service:
Make sure the Grafana service starts automatically at boot:
sudo systemctl enable grafana-server
7. Access Grafana in Your Web Browser:
In your web browser, go to http://localhost:3000. The Grafana interface will open.
8. Create Username and Password:
The default username is “admin” and password is “admin“. For security, change this information when you first log in.
Configuring Grafana:
Once you log in to the Grafana interface, you can add your data sources, create dashboards, and create charts. You can learn more by checking out Grafana’s comprehensive documentation: https:/ /grafana.com/docs/
Additional Tips on Installing Grafana on Ubuntu:
- You may also consider running Grafana in a Docker container. This allows you to install and manage Grafana as a standalone application.
- You can run Grafana on your Kubernetes cluster. This allows you to run Grafana in a scalable and highly available way.
- You can use Grafana with other data collection tools such as Prometheus. This allows Grafana to collect and analyze a wider range of data.
Result:
In this guide, we have shown you step by step how to install Grafana on Ubuntu server. Grafana is a powerful tool for tracking and analyzing your time series data. By following the steps in this guide, you can get Grafana up and running and gain valuable insight into the data in your network and infrastructure.
